Patent: MS04Y
Combines a quick throughput, superior barrier deterrence and optical tailgate detection, turnstile entrance gates MS04Y is a reliable and efficient access control solution for all upscale business or institutional environments.
share:
Advantages Specifications Dimension Gallery

Turnstile Entrance Gates :

Turnstile Entrance Gates Description:

As a premium retractable glass turnstile entrance gate, MS04Y attracts people's attention with its artistic design and advanced control system. With comfortable materials, warm traffic instructions, and with appealing appearance, this unit gives a user-friendly experience.
When a valid opening signal is received, the glass barrier rapidly retracts into the interior of the cabinets, providing an open passage for users. Photoelectric switches on both sides protect children, the elderly, and the handicapped from being caught and injured by the barrier.

Turnstile Entrance Gates Installation Guide:

Turnstile Entrance Gates Variations:

Its streamlined enclosure design offers two widths for standard or disabled access. Besides, a variety of third-party access control systems can be integrated with the system in order to provide additional security against unwanted intrusion.

Turnstile Entrance Gates Applications:

Ultra-fast door opening, strict tailgating detection, and elegant design make MS04Y turnstile entrance gate the first choice for entry control of various public facilities.
The large interior space can integrate readers and ticketing system equipment required for public transportation systems, such as QR code scanners, and barcode scanners. Therefore, it is widely used in subways, customs, ferry terminals, stations, high-speed railways, railway stations, airports, etc.

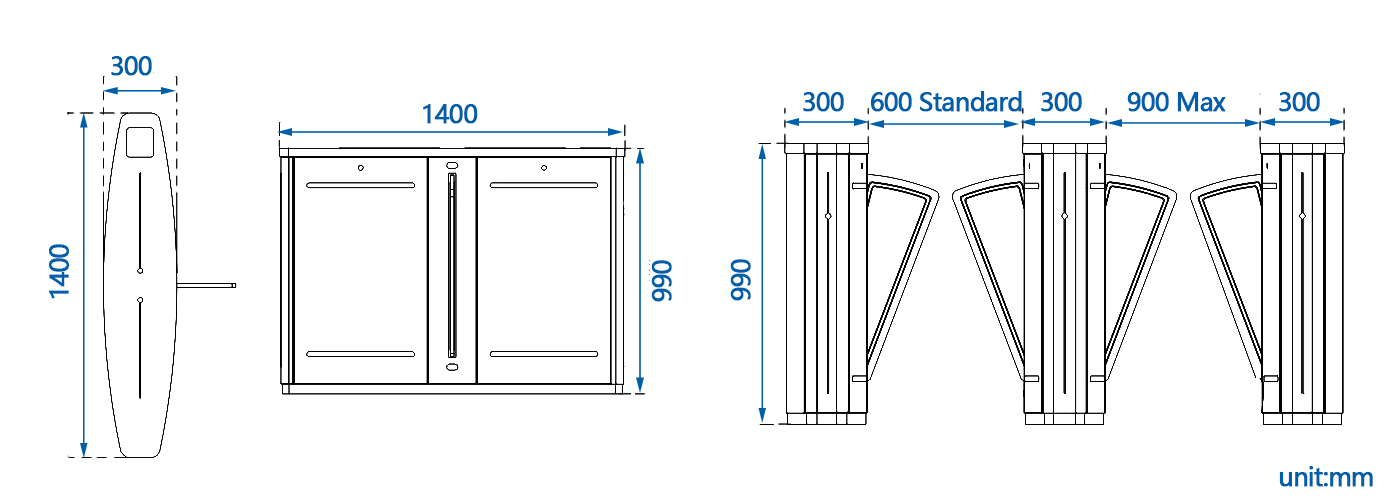

Turnstile Entrance Gates Dimension:
Turnstile Entrance Gates dimension

Turnstile Entrance Gates Gallery:

Turnstile Entrance Gates Features:

● Convenient

Extreamly high throughput offered by turnstile entrance gates, no matter RFID card, contactless face recognition or barcode scanning.
Real-time storage and intelligent analysis statistics.

● Reliable and confidential

Turnstile entrance gates have an anti-shock function when the gate is not opened. At this time, the gate is automatically closed, and the swing arm is automatically locked, which effectively prevents the illegal entry of outsiders and vehicles, and ensures the safety of people and items in the living area.
At the same time, administrators can also perform remote control and management through software, which is particularly convenient for management.

● Safety

With the anti-collision function of  turnstile entrance gates, if the swing arm is blocked when it is reset, the gate will stop working within a specified time, and the collision force of the swing arm is minimal, which effectively ensures the safety of passers-by.
With the automatic reset function of turnstile entrance gates, if there is no access after the gate is opened, the system will cancel the user's access permission this time, which also plays a protective role.

● Easy to use

Easy to install turnstile entrance gates, easy to wire, easy to operate, and requires no daily maintenance.

● High flexibility

Users can set functions according to their own needs to meet the needs of users in different applications.

Model No. MS04Y
Cabinet Material SUS304/316 stainless steel
Swing Material Plexi-glass or tempered glass
Unit Dimension(W*L*H) 1400*300*990mm
Passing Direction Uni-directional/Bi-directional
Photoelectric Sensor 4 pairs (2 for protecting children)
Passage Width 600/900mm
Opening/Closing 0.5 seconds
Flow Rate 35-40 person/min
Mechanism Brushless motor
Power Supply AC100-230V,50Hz
Voltage from the AC (100–240) V, 50/60 Hz
from a DC source 24 V
Application Indoor and outdoor(Shelter)
Working Temperature -25℃~+70℃
Operation Humidity 0 ~ 95% (No freeze)
MCBF 8,000,000 cycles
Anti-panic mode Automatically open when power off
Communication Dry contact, Relay signal, RS485
Turnstile Entrance Gates dimension
