Patent: MS06Y

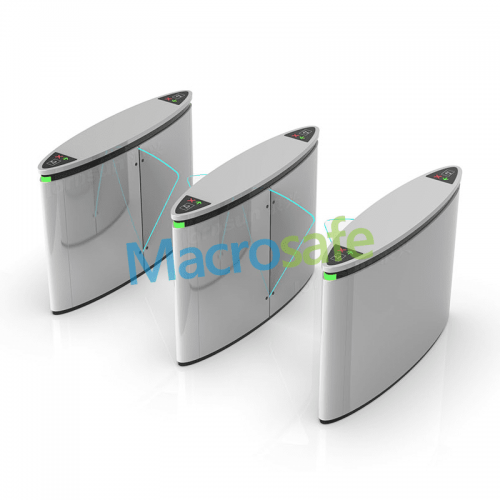

The oval housing is fabricated from 2.0mm thick brushed 304 stainless steel. Heavy-duty construction, waterproof to IP56 standards, long life with minimal required maintenance make MS06Y usable both indoors and out.
share:
Advantages Specifications

Metro Turnstile Video:

Metro Turnstile Description:

Metro turnstile is a type of turnstile that  is specifically developed for the metro station to fulfill the requirements of high traffic volume, quiet and smooth operation. It is capable of inspecting the passenger's ticket and open the passage in a very short amount of time. Multiple sets of infrared detectors placed strategically along the channel are able to detect fare evaders with great sensitivity while also preventing passengers from becoming entangled in or hurt by the barrier. If there is any emergency, the barrier in the middle is quickly opened automatically so that passengers can leave without obstruction.

Metro Turnstile Installation Guide:

Metro Turnstile Variations:

The width of the aisle has a standard 600mm, and 900mm for the disabled or people with oversized luggage;
The control system of metro turnstiles can choose brush (lowest price), brushless (cost effective) and servo (high end);

Metro Turnstile Applications:

When installing turnstiles for metro station, quick-opening is the primary consideration, because metro station are always very crowded. MS07Y offers ultra-short door opening times, allowing fast passage of up to 45 people per minute. Developed specifically for high foot traffic, making it ideal for shopping malls, office properties, theaters, entertainment venues, amusement parks, scenic sites, stations, and many other locations.

Metro Turnstiles Dimension:

Metro Turnstile

Metro Turnstiles Features:


The whole system runs smoothly, quite, no mechanical impact;

High glass barriers avoid climbing over/crawling;

Automatic reset function: tripod arm will lock automatically if nobody enter within 5s(Can be set);


Advance servo motor ensures short open time;

Automatically open/close if power off;

Can be integrated with any type of access control systems;

Simple installation, easy operation, and low maintenance;

Model No. MS06Y
Cabinet Material SUS304/316 stainless steel
Arm Material SUS304/316 stainless steel
Unit Dimension(W*L*H) 1400*300*1000mm
Passing Direction Uni-directional/Bi-directional
Photoelectric Sensor 4 Pairs
Passage Width 550mm
Opening/Closing 0.5 seconds
Flow Rate 40-45 person/min
Mechanism

Brushless/Servo Motor

Power Supply AC100-230V,50Hz
Voltage from the AC (100–240) V, 50/60 Hz
from a DC source 24 V
Application Indoor and outdoor(Shelter)
Working Temperature -25℃~+70℃
Operation Humidity 0 ~ 95% (No freeze)
MCBF 8,000,000 cycles
Anti-panic mode Automatically open when power off
Communication Dry contact, Relay signal, RS485
