Patent: MS02G1

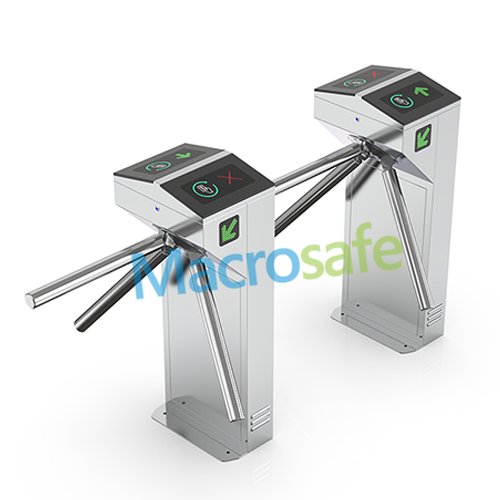

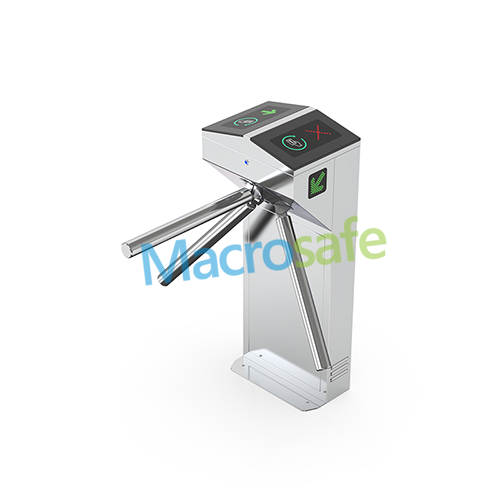

Turnstile Gate With Card Reader  MS02G1 has an unique look with artificial marble top lid which can be customized with various colors or patterns to fit in with every user.
share:
PDF Downloads (Welcome to ask for the file passwords.)
Advantages Specifications Dimension Options Gallery

Turnstile Gate With Card Reader Description:

Turnstile gate with card reader is a kind of access turnstiles with built-in card reader, people can open the turnstile gates by swiping the authorized card to enter.

Although with the advancement of biometric technology, more and more people use biometric turnstiles. At present, turnstile turnstile with card reader is still the most used turnstile gates, because it has the following irreplaceable benefits:
 Low cost
Easy installation
 Fast response allows higher throughput
✔ Linkage with other systems to realize universal use of one card
Low maintenance


MS02G1 is an unique turnstile gate with card reader that offers small footprint, simple installation and easy use. With its rotating mechanical design, only one individual can pass at a time, so the passage of people can be effectively controlled. Designed with a small and refined shape, it suits all kinds of working environments.

Turnstile Gate With Card Reader

Turnstile Gate With Card Reader Varations:

Depending on the project needs, turnstile gate with card readers can be one-way or two-way.
Tripod turnstiles, flap barriers, swing barrier gate, speed gates and full height turnstiles , all kind of turnstile gates can integrated with embedded card readers.

Turnstile Gate With Card Reader Applications:

Featuring a minimalist design made up of top surface marble and stainless steel body, MS02G is one of the best options for indoors in any setting, such as: offices, schools, shopping malls, hotels, exhibition halls, and gymnasiums.

How much

Turnstile Gate With Card Reader Features:


The whole system runs smoothly, low noise, no mechanical impact;

One person pass at a time, ensuring no tailgating;

Automatic reset function: tripod arm will lock automatically if nobody enter within 5s(Can be set);


Tripod Arms run smoothly with low noise system;

Automatically drop arm if power fails;

Can be integrated with any type of access control systems;

Simple installation, operation and maintenance;
Common faults and solutions for turnstiles gate with card reader
1. The turnstile gate is not opened after swiping the card
Possible Causes:
A. The card has no authority or has expired
B. The access controller is abnormal.
C. The open signal line is not connected properly

Solution:
A. Check whether the authority and time of card issuance by the access control platform are correct.

B. Check whether the access control controller relay operates when the card is swiped.
If there is no action, it means that the access control part is working abnormally, otherwise, please continue to perform the following steps.

C. Check the signal indicator light on the turnstile gate main board.
If the indicator light is not on, it means that the open signal is not received, please reconnect the open signal line.

2. After power failure, the turnstile gate does not open
Possible cause: The voltage of the backup battery (storage battery) is insufficient.
Solution: Use a multimeter to measure whether the voltage is above 10V, if not, please replace the backup battery

3. After swiping the card, only one of the turnstile gates in the same channel open and the other keep close.
Possible Causes: The sync cable is not connected correctly.
Solution: Reconnect the sync cable.

4. After swiping the card, the turnstile gate cannot be closed normally after it is opened.
Possible reason: The anti-pinch infrared is not properly aligned.
Solution: Re-align the IR sensor.

5. After the gate is opened, it will be delayed for a period of time before closing
Possible Causes:
A. The memory function of the motherboard is turned on.
B. The infrared function is abnormal.

Solutions:
A. Turn off the memory function.
B. Check if the infrared function is normal and the infrared sensors on both sides are switched on.

6. The turnstile gates close immediately after they are fully opened
Possible cause: The left/right infrared wires are reversed.
Solution: Reconnect the mainboard cable.

7. After the gate is opened, it does not close for a long time
Possible Causes:
A. The opening time of entry and exit is set too long.
B. The infrared sensor voltage is abnormal.
C. The infrared sensor is damaged.

Solution:
A. Adjust the opening time of entry and exit.
B. Use a voltmeter to measure the black output signal terminal, it should be 10V normally, if not, please check the power supply and power wiring problems.

8. Does Turnstiles gates with card reader support voice prompts for entry and exit?
Refer to the user manual to choose the voice broadcast.

9. Alarm when pedestrians pass through the turnstile gate
Possible Causes:
A. The opening time of the entrance and exit is set too short.
B. The connection of the incoming and outgoing infrared photoelectric switch is incorrect.

Solution:
Check whether the opening time of the entrance and exit is set too short.
A. Adjust the opening time of the entrance and exit.
B. Reconnect the incoming and outgoing infrared photoelectric switch.
Model No. MS02G1
Cabinet Material SUS304/316 stainless steel
Arm Material SUS304/316 stainless steel
Unit Dimension(W*L*H) 400*300*980mm
Passing Direction Uni-directional/Bi-directional
Photoelectric Sensor None
Passage Width 550mm
Opening/Closing 0.5 seconds
Flow Rate 30-35 person/min
Mechanism

Absorption of electromagnet/Motor

Power Supply AC100-230V,50Hz
Voltage from the AC (100–240) V, 50/60 Hz
from a DC source 24 V
Application Indoor and outdoor(Shelter)
Working Temperature -25℃~+70℃
Operation Humidity 0 ~ 95% (No freeze)
MCBF 8,000,000 cycles
Anti-panic mode Automatically open when power off
Communication Dry contact, Relay signal, RS485
Turnstile Gate With Card Reader  dimension
Flexible configurations available optionally up on request.

01 Cabinet Material
Generally cabinets are made from brushed 304 stainless steel.
The following materials are also available:
02 Cabinet Anti-fingerprint process
Anti-fingerprint steel treatment is based on the original 304 stainless steel, after vacuum coating, forming a layer of bright protective film on the surface also has the function of anti-fingerprint.
03 Cabinet Colors
In addition to the primary color of stainless steel, you can also choose other colors, such as white, black, brown, etc., to make it more coordinated with your building.
04 Glass Etching
Support personalize glass barriers and side panels with etched artwork, logos or directions.
05 Panels Material
You can select plexi-glass or tempered glass for swing panels and/or filter panels.
06 Mechanism
Configured absorption of electromagnet by default.
You can choose to upgrade it with motor.
07 Custom Illumination
Besides regular LED indicator, static or dynamic lightings hidden in the glass panels are also optional ,which meets the different needs of various occasions.
*More options and customizations available on request.
