Flap Barrier Gate

Outdoor Turnstile Flap Barrier

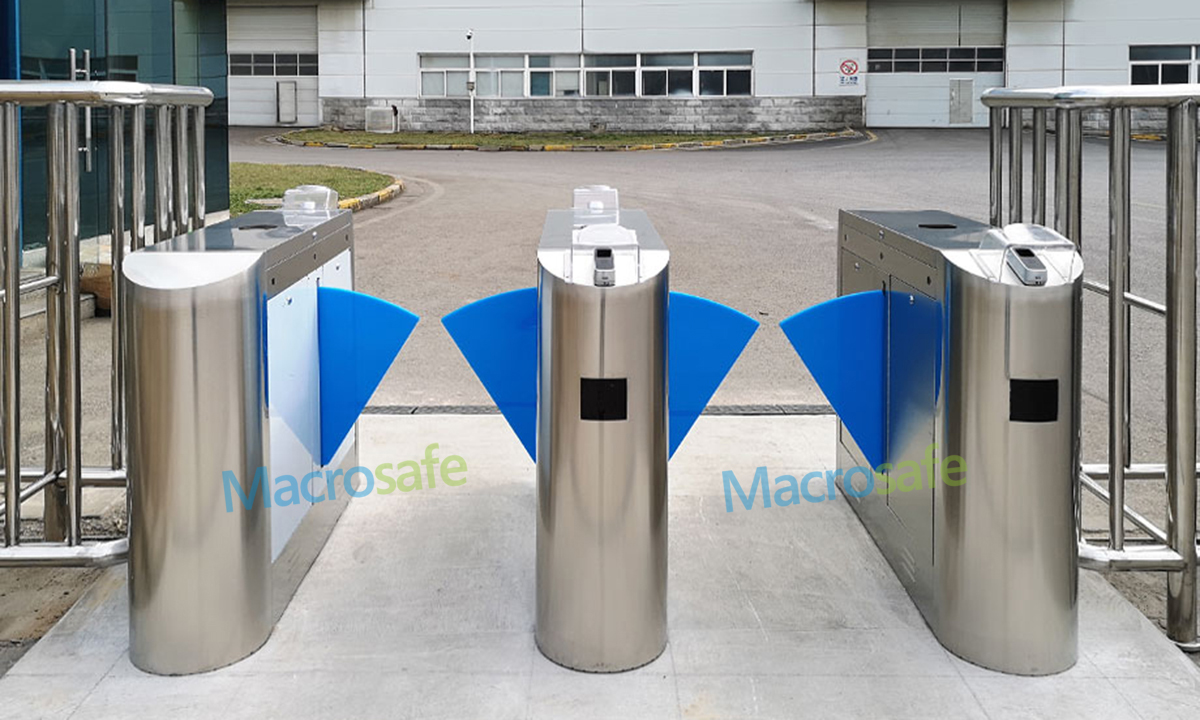

Metal MS01Y  flap barrier is a fantastic option for controlled access which feature smooth bi-parting angel panels to maximize user comfort. With a brushed stainless steel cabinet and rainproof structure, it ensures long service life.
share:
Advantages Specifications Dimension Options Gallery

Outdoor Turnstile Video:

Outdoor Turnstile Description:

Outdoor Turnstile, as the name suggests, is a kind of pedestrian turnstile gate that can be used outdoors for manage and track people entering or leaving designated areas, such as workplaces, or playgrouds.
MS01Y outdoor turnstile is our entry-level flap barrier model, its rugged construction, easy performing and extremely low maintenance make it a popular choice for many outdoor applications.
The two stainless steel cabinets have built-in pairs of infrared sensors that emit an invisible beam of light to reliably detect unwanted entry. With IP 65 design and seamless chassis, MS01Y is the ideal turnstile for outdoor facilities, even in harsh environments with bad weather.

Outdoor Turnstile Installation Guide:

Outdoor Turnstile Variations:

The passage space can be  standard width or disabled accessible width;
A powder-coated finish is available in several colors if a more unique design desired;

Outdoor Turnstile Variations:

Short opening time allows high through traffic each minute, plus very favorable prices, in addition to industrial parks and electronic factories, it is also very suitable for some places with high traffic, such as scenic spots, playgrounds, construction sites, facotries, amusement parks, gymnasiums , swimming pool, etc.

Outdoor Turnstile Features:


Photoelectric sensors detect including unauthorized entry, tailgating, illegal intrusion, reverse intrusion, etc;

Ensure that children pass safely with two of sensors especially for detecting them;

Automatic reset function: swing arms will lock automatically if nobody enters within 5s(Can be set);

Passage width can be 600mm or 900mm, the latter can be applied to wheelchairs and prams;

Swing barriers run smoothly with low noise system;

Automatically open if power fails

Can be integrated with any type of access control systems;

Simple installation, operation and maintenance;
Model No. MS01Y
Cabinet Material SUS304/316 stainless steel
Swing Material stainless steel or Plexi-glass
Unit Dimension(W*L*H) 1200*300*980mm
Passing Direction Uni-directional/Bi-directional
Photoelectric Sensor 4 pairs (2 for protecting children)
Passage Width 600/900mm
Opening/Closing 0.5 seconds
Flow Rate 35-40 person/min
Mechanism Brushless motor
Power Supply AC100-230V,50Hz
Voltage from the AC (100–240) V, 50/60 Hz
from a DC source 24 V
Application Indoor and outdoor
Working Temperature -25℃~+70℃
Operation Humidity 0 ~ 95% (No freeze)
MCBF 8,000,000 cycles
Anti-panic mode Automatically open when power off
Communication Dry contact, Relay signal, RS485
Outdoor Turnstile dimension
Flexible configurations available optionally up on request.

01 Cabinet Material
Generally cabinets are made from brushed 304 stainless steel.
The following materials are also available:
02 Cabinet Anti-fingerprint process
Anti-fingerprint steel treatment is based on the original 304 stainless steel, after vacuum coating, forming a layer of bright protective film on the surface also has the function of anti-fingerprint.
03 Cabinet Colors
In addition to the primary color of stainless steel, you can also choose other colors, such as white, black, brown, etc., to make it more coordinated with your building.
04 Glass Etching
Support personalize glass barriers and side panels with etched artwork, logos or directions.
05 Panels Material
You can select plexi-glass or tempered glass for swing panels and/or filter panels.
06 Mechanism
Configured brushless motor by default.
You can choose to upgrade it with servo motor, make it perform even better beyond your expect.
High swing arm(ground clearance≥1.2meter) configured servo motor by default.
07 Custom Illumination
Besides regular LED indicator, static or dynamic lightings hidden in the glass panels are also optional ,which meets the different needs of various occasions.
*More options and customizations available on request.
