Patent: MS03Y

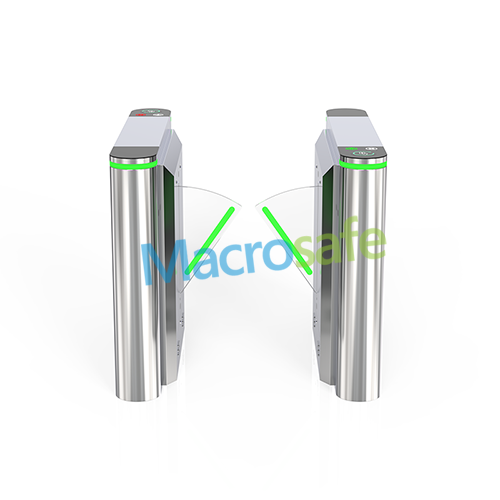

Flap barrier turnstile MS03Y lobby turnstiles is at the forefront of turnstile technology includes all the latest features to offer a perfect access solution for where need high security. It has round-ended fabulous shape and pleasant light guidance.
share:
Advantages Specifications Dimension Options Gallery

Flap Barrier Turnstile Video:


Flap Barrier Turnstile Description:

Flap barrier turnstile known as the flap barrier gate and flap turnstile. MS03Y is based on comfort, safety and refinement, and has been warmly sought after by customers as soon as it is launched.
The streamlined design, polished stainless steel and seamless compact chassis also give us high-traffic control and quiet, smooth operation. It has a quick retractable acrylic panel and intuitive traffic lights to bring users the most pleasant and warm experience.

Flap Barrier Turnstile Installation Guide:

Flap Barrier Turnstile Variations:

MS03Y breaks the stereotype of flap barrier turnstile and is no longer bloated and clumsy. Available in standard and extended acrylic barriers, the MS03 is one of the ideal options even for wheelchair access.
The standard top cover is black acrylic, and the color, pattern and material can be changed.
In addition to that, the stainless steel finish can be replaced with a powder-coated finish in any color.

Flap Barrier Turnstile Applications:

The built-in stable and reliable photoelectric detection module regulates user behavior under the premise of ensuring safety.
It has an attractive open look and is the right choice for many applications. Including subways, airports, high-speed railway stations, office buildings, customs, exhibition halls, concert halls, etc.

Flap Barrier Turnstile Features::


Photoelectric sensors detects including unauthorized entry, tailgating , illegal intrusion, reverse intrusion, etc;

Ensure that children pass safely with two of sensors especially for detecting them;

Automatic reset function: swing arms will lock automatically if nobody enter within 5s(Can be set);

Passage width can be chosen 600mm or 900mm,the latter can be applied to wheelchairs and prams;

Swing barriers run smoothly with low noise system;

Automatically open if power fails;

Can be integrated with any type of access control systems;

Simple installation, easy operation and low maintenance;
Model No. MS03Y
Cabinet Material SUS304/316 stainless steel
Swing Material Plexi-glass or tempered glass
Unit Dimension(W*L*H) 1200*300*980mm
Passing Direction Uni-directional/Bi-directional
Photoelectric Sensor 4 pairs (2 for protecting children)
Passage Width 600/900mm
Opening/Closing 0.5 seconds
Flow Rate 45-50 person/min
Mechanism Brushless motor
Power Supply AC100-230V,50Hz
Voltage from the AC (100–240) V, 50/60 Hz
from a DC source 24 V
Application Indoor and outdoor(Shelter)
Working Temperature -25℃~+70℃
Operation Humidity 0 ~ 95% (No freeze)
MCBF 8,000,000 cycles
Anti-panic mode Automatically open when power off
Communication Dry contact, Relay signal, RS485
挡板闸机尺寸
Flexible configurations available optionally up on request.

01 Cabinet Material
Generally cabinets are made from brushed 304 stainless steel.
The following materials are also available:
02 Cabinet Anti-fingerprint process
Anti-fingerprint steel treatment is based on the original 304 stainless steel, after vacuum coating, forming a layer of bright protective film on the surface also has the function of anti-fingerprint.
03 Cabinet Colors
In addition to the primary color of stainless steel, you can also choose other colors, such as white, black, brown, etc., to make it more coordinated with your building.
04 Glass Etching
Support personalize glass barriers and side panels with etched artwork, logos or directions.
05 Panels Material
You can select plexi-glass or tempered glass for swing panels and/or filter panels.
06 Mechanism
Configured brushless motor by default.
You can choose to upgrade it with servo motor, make it perform even better beyond your expect.
High swing arm(ground clearance≥1.2meter) configured servo motor by default.
07 Custom Illumination
Besides regular LED indicator, static or dynamic lightings hidden in the glass panels are also optional ,which meets the different needs of various occasions.
*More options and customizations available on request.
