Automated Turnstiles Video:
Automated Turnstiles Description:

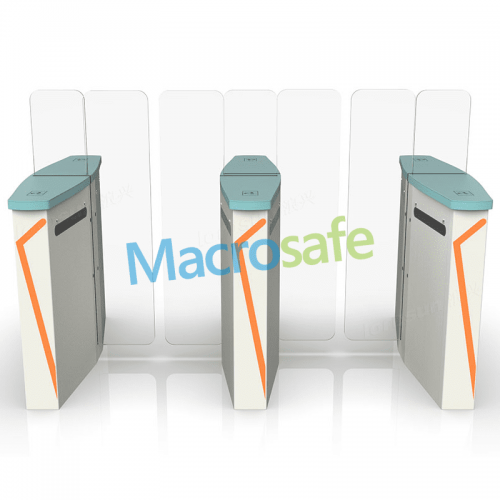

Automated Turnstile is a type of turnstile that is drived by a motor to open and close the barrier without human intervention after receiving a signal. This can either prevent or enable users to enter the area depending on whether they have valid authorizations. With numerous invisible infrared lights between the left and right cabinets. When an intruder is discovered, the automated turnstile will sound an alarm and flash lights to discourage further attempts at entry.
Automated Turnstiles Variations:
The whole machine of MS09S is made of cold-rolled sheet with baking varnish, which highlights the craftsmanship of modern design. The color of the baking paint can be customized to better match with the building.
The height of the barrier can be determined based on the desired level of security at the installation site.
Automated Turnstiles Applications:
When developing buildings, architects always strive for a unique aesthetic. As a part of the building, only providing security is not enough now. Automated turnstile MS09S is a work of art that mixes safety and beauty flawlessly.
High-end hotels, government agencies, cultural institutions, museums, art centers, customs, airports, etc., as well as other unguarded high-end locations favor it a lot.
Automated Turnstiles Dimension:
| Model No. |
MS09S |
| Cabinet Material |
SUS304/316 stainless steel |
| Arm Material |
SUS304/316 stainless steel |
| Unit Dimension(W*L*H) |
1400*300*1000mm |
| Passing Direction |
Uni-directional/Bi-directional |
| Photoelectric Sensor |
4 Pairs |
| Passage Width |
550mm |
| Opening/Closing |
0.5 seconds |
| Flow Rate |
40-45 person/min |
| Mechanism |
Brushless/Servo Motor
|
| Power Supply |
AC100-230V,50Hz |
| Voltage |
from the AC (100–240) V, 50/60 Hz
from a DC source 24 V |
| Application |
Indoor and outdoor(Shelter) |
| Working Temperature |
-25℃~+70℃ |
| Operation Humidity |
0 ~ 95% (No freeze) |
| MCBF |
8,000,000 cycles |
| Anti-panic mode |
Automatically open when power off |
| Communication |
Dry contact, Relay signal, RS485 |
