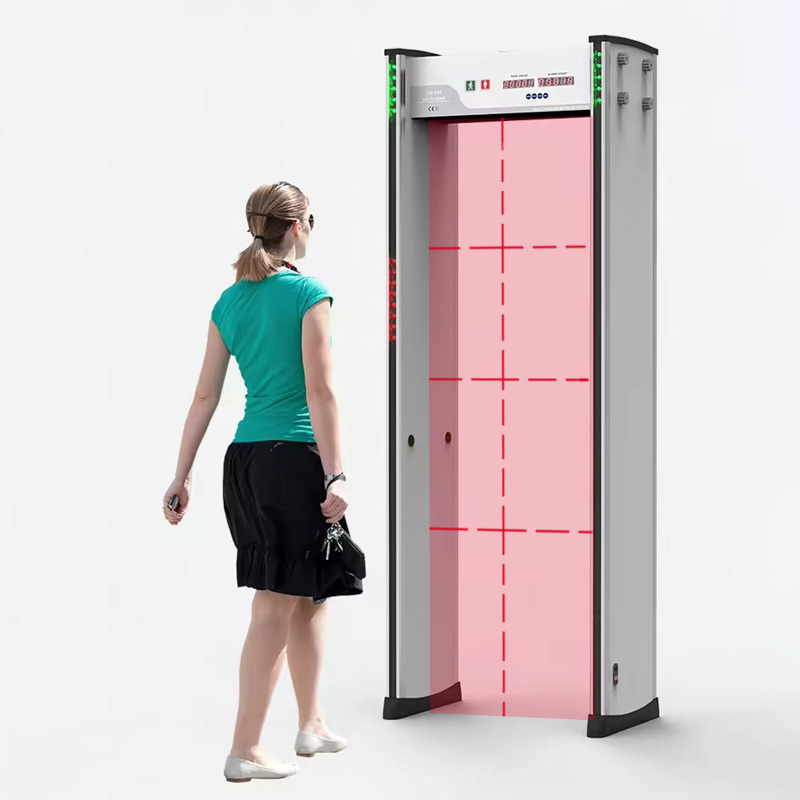

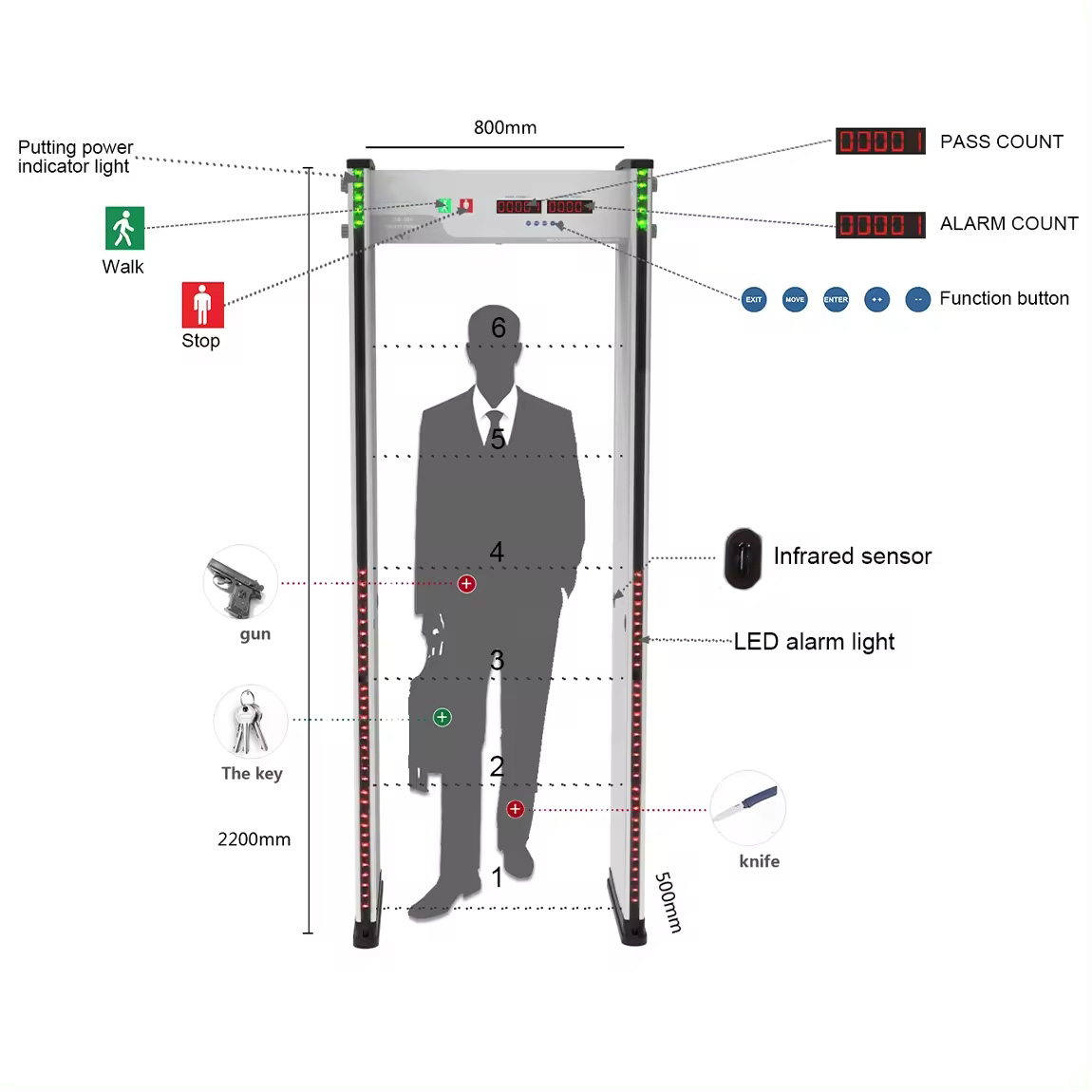

MS-D800 security gate features a unique 8-zones detection system designed to correspond with the basic structure of the human body. This innovative design, coupled with mesh detection and single-frequency excitation technology, effectively eliminates weak areas and blind spots within each detection zone. This results in heightened sensitivity, improved stability, and the option to upgrade to 16 or 24 detection zones for more precise area targeting. Additionally, the LED indicator lights on both sides accurately pinpoint the location of concealed metal objects, enhancing overall security effectiveness.
● Strong Anti-Interference Capability: Utilizes digital, analo g, and left-right balance technology to prevent false alarms and omissions, significantly improving anti-interference capability.
● Electromagnetic Radiation Compliance: Adheres to EMC electromagnetic radiation standards, employing weak magnetic field technology to ensure safety for individuals with pacemakers, pregnant women, floppy disks, photographic film, and videotapes.
● Zone Sensitivity Adjustment: Allows independent sensitivity adjustment for each zone and additional overall zero-gradient settings.
● Alarm System: Equipped with both audio and visual alarms.
● Built-In Power Supply: Supports outdoor use with 2-8 hours continuous operation (customizable option).

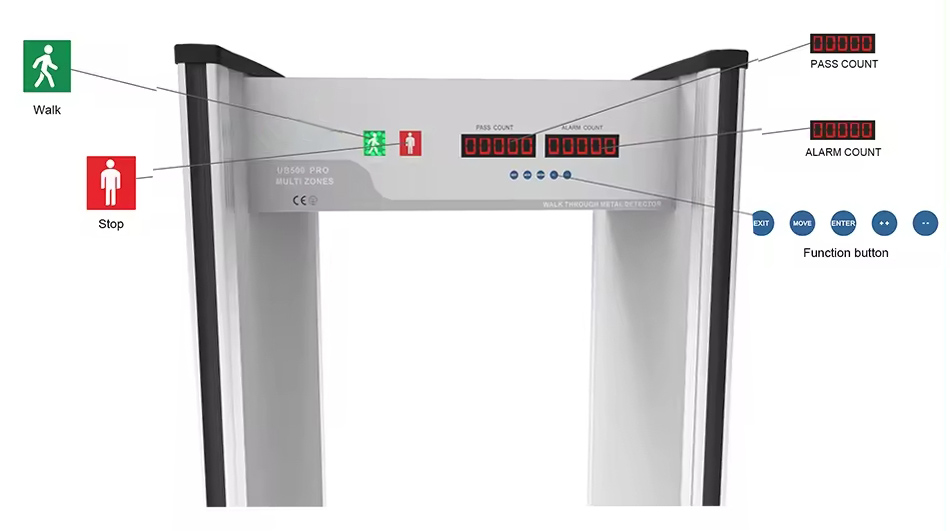

The MS-D260 walk through security metal detector features easy and quick setup and calibration through the control panel's function buttons. It supports separate counting of passing individuals and alerted individuals, providing comprehensive data tracking capabilities.
| Model No. | MS-D800 |
| Detect items | Keys, glass, knife, gun, coin, etc |
| Working Temp. | -20℃~50℃ |

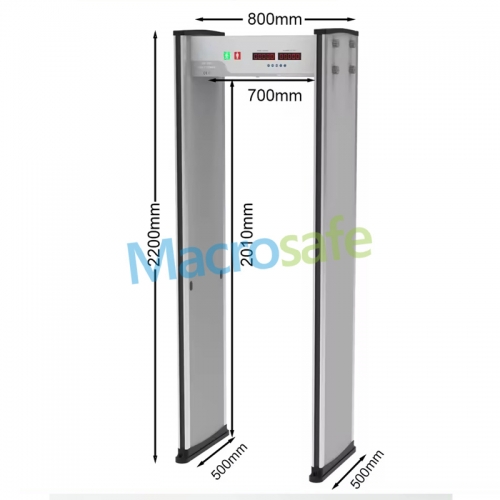

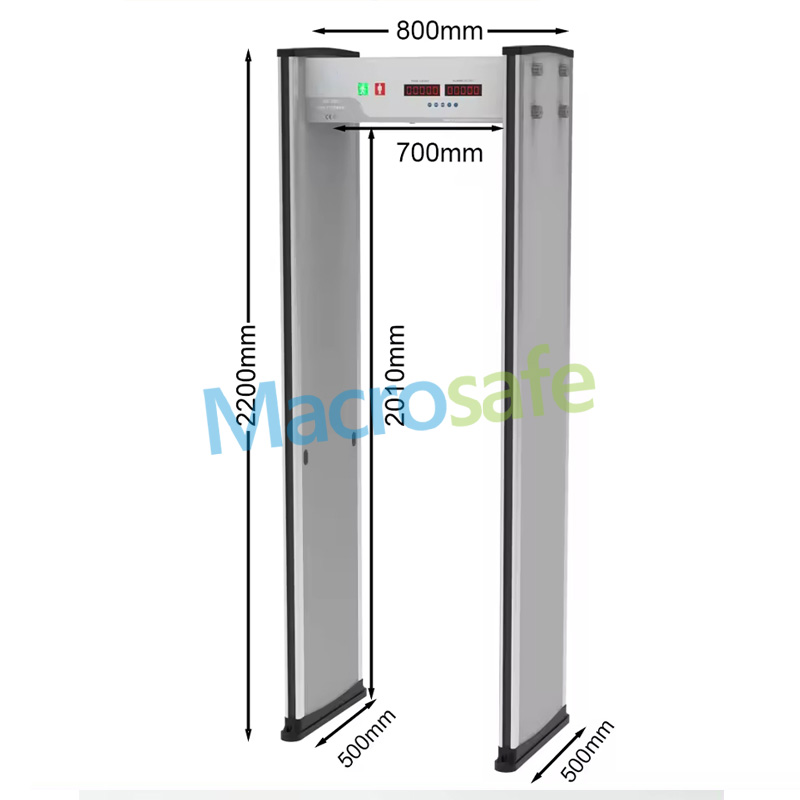

| Passage dimension | 2010mm(H)*700mm(W)*500mm(D) |
| Product size | 2200mm*800mm*580mm |
| Packaging size | 2260mm*550mm*235mm(door panel) 750mm*340mm*200mm (control unit) |
| Packaging | Carton |
| Material |
PVC |
| Power | ＜20w |
| Weight | 65KG |
